Offers a high capacity, sliding storage tray, allowing easy access to the lower stowage space of your California & easily attaches to the VW rail system.
SpaceMate Range
Dimensions
![](http://spacematetray.com/cdn/shop/files/SMD2.2std_600x450.jpg?v=1694450056)
-
Ocean
- Internal dimensions 905 w x 685 d x120 h mm
- External dimensions 980 w x 740 d x 145 h mm
- Lost Height from California floor to base of Tray 20mm
- NO NEED TO MOVE REAR BENCH SEAT (rear cupboard space remains accessible)
-
Beach
- Reduced Weight - 17% lighter
- Internal dimensions 1008 w x 710 d x120 h mm
- External dimensions 1080 w x 775 d x 145 h mm
-
Stubby
- Internal dimensions 905 w x 510 d x120 h mm
- External dimensions 980 w x 560 d x 145 h mm
- Lost Height from California floor to base of Tray 20mm
-
SpaceMate v 2.3 Standard Features
- NEW Rubber Roller System
- Reduced Weight
- 100kg capacity
- Quick and easy to fit to the VW rail system
Optional Extras
A range of add -ons to enhance the functionality of your SpaceMate storage solution
What's New with SpaceMate v2.3
NEW Rubber Roller System
Reduced Weight - 17% lighter
Maximum storage width
Maximum storage depth (without having to move bench seat)
New "VW" sounding slam latch
New super ridged subframe
Drain hole
California Beach 2 seat Bench fittings as standard
Reduced shipping costs!
![](http://spacematetray.com/cdn/shop/files/VW_Claifornia_SpaceMate_v2.3_934x700.jpg?v=1703412082)
SpaceMate v2.3 - British Engineering Quality: 10% more storage space and 4x the strength.
The SpaceMate Subframe is made from a single sheet of laser cut steel. Two strengthening cross members and CNC machine folded steel with only two TIG welded seams give unparalleled rigidity to protect the VW Rail System.
Spacers underneath the subframe ensure it also remains flat over the raised rail system. Laser cut fixing holes to line up with the 2 or 3 Rail System in the T5, T6 and T6.1 for the Ocean and Coast.
A rubber layer under the subframe protects the VW rail system and three rubber rollers ensure that the SpaceMate Drawer will not drag even under maximum load.
Years of trials with single and double latched slides have led to the SpaceMate now being uniquely offered with a single central slam latch. This enables the drawer to be opened with one free hand making access whilst carrying gear easy.
The flush fitting single latch allows deeper storage space than the two-handed protruding double latch system.
This space maximisation is complimented at the rear of the Drawer system where the bespoke manufactured T-bolt fixing kit sits underneath the closed drawer giving additional storage right up to the rear bench seat without having to move it forward as with other designs.
The SpaceMate will offer over 10% extra space storage when compared to others. With installation and removal ease in mind, the T bolts are held in place and can be permanently left in place to allow the SpaceMate to be easily removed and refitted.
Designed for California owners by California owners

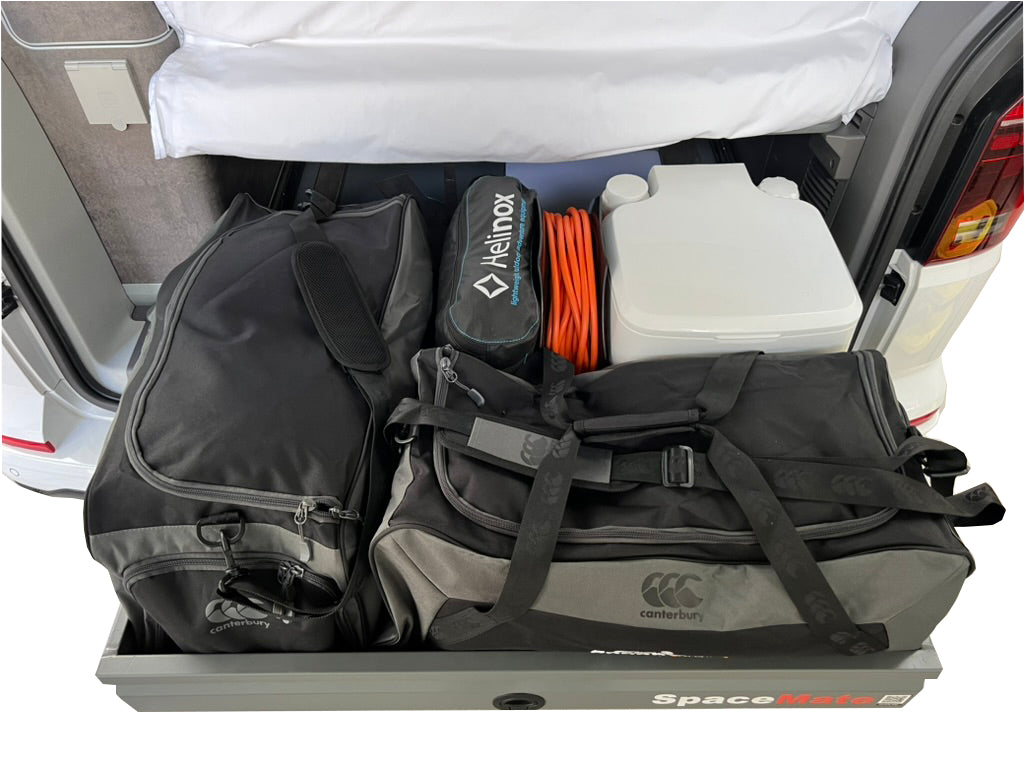

The elevated sides of the SpaceMate eliminate the requirement for extra storage containers and enable convenient storge of the 335 Porta-Potti. The utilization of flush fitting rivets ensures that the interior storage capacity is optimized, without any protruding nuts or bolts that could cause snagging to your valuable cargo.
The snug subframe maximizes the size of the SpaceMate and prevents any sideways movement, secured again with flush rivets. This ensures that the California trim and rail system remains protected at all times, regardless of weight or road conditions.
Powder coated in SpaceMate Grey to match the California T6.1 interior.
Ocean, Coast, Surf & SE
Usable Internal dimensions: 905w x 685d x121h mm
External dimensions: 980w x 740d x 150h mm
Beach
Internal dimensions 1008 w x 710 d x120 h mm
External dimensions 1080 w x 775 d x 145 h mm
![](http://spacematetray.com/cdn/shop/files/SMDORP-Loaded_933x700.jpg?v=1692626079)
SpaceMate V2.3 for 3 seat Beach
Campervan Journey put the SpaceMate through its paces. Watch JT's review of the Storage Tray and it's various configuration options >>>
SpaceMate v2.3 Now takes the 335 Porta-Potti!
![](http://spacematetray.com/cdn/shop/files/IMG_2069_934x700.jpg?v=1678018211)
